[Android/Layout]ListView 생성하기

<구현화면>

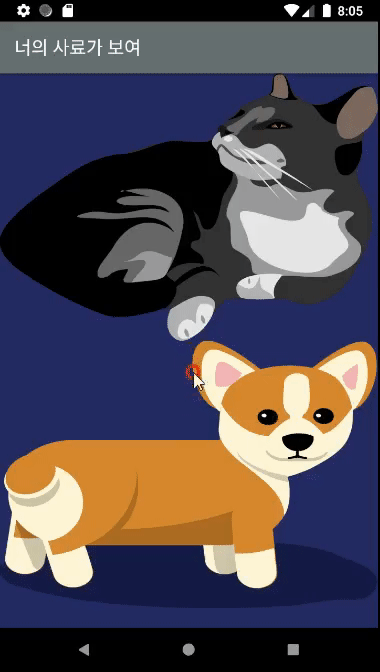

리스트뷰 구현 완료



1. activity_dog_main.xml 에 리스트뷰 생성

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".DogMainActivity">

    <ListView
        android:id="@+id/listView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.0"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

 </LinearLayout>



2. 위 리스트뷰 안에 들어갈 레이아웃 생성 (activity_list_item.xml)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".list_item">

    <ImageView
        android:id="@+id/imageView1"
        android:layout_width="50dp"
        android:layout_height="100dp"
        android:layout_weight="2"
        android:background="@drawable/cat"
        android:scaleType="centerInside" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:layout_weight="9"
        android:orientation="vertical"
        android:weightSum="10">

        <TextView
            android:id="@+id/textView1"
            android:layout_width="match_parent"
            android:layout_height="134dp"
            android:layout_weight="2"
            android:gravity="center_vertical"
            android:text="New Text"
            android:layout_margin="10dp"
            android:textSize="24dp" />

        <TextView
            android:id="@+id/textView2"
            android:layout_width="match_parent"
            android:layout_height="470dp"
            android:layout_weight="6"
            android:text="New Text"
            android:layout_margin="10dp"
            android:textSize="16dp" />

    </LinearLayout>

  </LinearLayout>

* 이미지는 임시로 고양이 이미지 사용





3. 데이터를 받을 list_item.java 클래스 생성

public class list_item extends AppCompatActivity {
    public String name;
    public String desc;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_list_item);
    }

    public list_item(String name, String desc) {
        this.name = name;
        this.desc = desc;
    }

    public String getName()
    {
        return this.name;
    }

    public String getDesc()
    {
        return this.desc;
    }
}



4. dog_main과 list_item 클래스를 연결해줄 ListViewAdapter.java 클래스 생성

public class ListViewAdapter extends BaseAdapter {

    Context mContext = null;
    LayoutInflater mLayoutInflater = null;
    ArrayList<list_item> list;

    public ListViewAdapter(Context context, ArrayList<list_item> listViewItemList) {
        mContext = context;
        list = listViewItemList;
        mLayoutInflater = LayoutInflater.from(mContext);
    }

    @Override
    public int getCount() {
        return list.size();
    }

    @Override
    public long getItemId(int position) {
        return position;
    }

    @Override
    public Object getItem(int position) {
        return list.get(position);
    }

    @Override
    public View  getView(int position, View convertView, ViewGroup parent) {
        View view = mLayoutInflater.inflate(R.layout.activity_list_item, null);

        TextView titleTextView = (TextView) view.findViewById(R.id.textView1) ;
        TextView descTextView = (TextView) view.findViewById(R.id.textView2) ;

        titleTextView.setText(list.get(position).getName());
        descTextView.setText(list.get(position).getDesc());

        return view;
    }

}



5. DogMainActivity.java

this.InitializeData();

ListView listview = (ListView) findViewById(R.id.listView);
final ListViewAdapter adapter = new ListViewAdapter(this,DataList);
listview.setAdapter(adapter);

listview.setOnItemClickListener(new AdapterView.OnItemClickListener(){
@Override
public void onItemClick(AdapterView parent, View v, int position, long id){

}
});

XmlPullParser_fsk fsk = new XmlPullParser_fsk();

private void InitializeData() {
    DataList = new ArrayList<list_item>();
    DataList.add(new list_item("test1","울랄라1"));
    DataList.add(new list_item("tt2","룰루2"));
    DataList.add(new list_item("test3","울랄라3"));
    DataList.add(new list_item("tt4","울랄라4"));
    DataList.add(new list_item("test5","룰루5"));
    DataList.add(new list_item("test6","울랄라6"));
    DataList.add(new list_item("test7","룰루7"));
    DataList.add(new list_item("tt8","울랄라8"));
}
